HOME / Product Info / Pump /
Pump
Pump

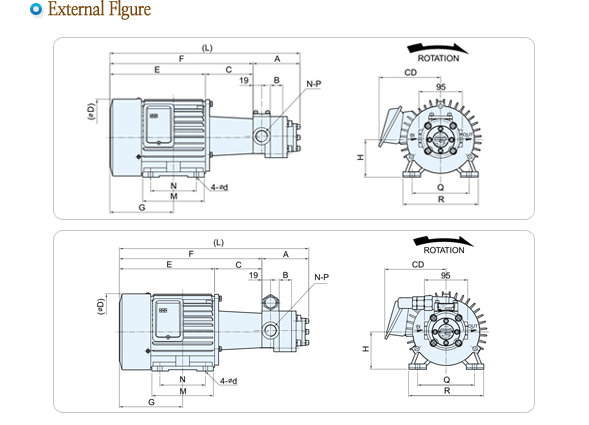

Motor
Power
C
D
E
F
G
L
d
M
N
Q
R
CD
H
400W
104
146
170
274
113
F+A
7
114
90
112
144
125
78
750W
104
168
208.5
312.5
138.5
F+A
10
135
100
125
165
135
82
1500W
85.5
185
239
324.5
158
F+A
10
156
125
140
172
140
92
TYPE
A
B
N-P
TYPE
A
B
N-P
HATP-203HA(VB)
81
5
2-1/2
HATP-210HA(VB)
93
17
2-3/4
HATP-204HA(VB)
83
7
2-1/2
HATP-212HA(VB)
96
20
2-3/4
HATP-206HA(VB)
86
10
2-1/2
HATP-216HA(VB)
103
27
2-3/4
HATP-208HA(VB)
90
14
2-1/2
HATP-220HA(VB)
109
33
2-3/4
TYPE
50Hz 4P(1500rpm)
60Hz 4P(1800rpm)
Discharge
(ℓ/min)
Motor Max.Pressure(kg/㎠)
Discharge
(ℓ/min)
Motor Max.Pressure(kg/㎠)
400W
750W
1500W
400W
750W
1500W
HATP-203HA(VB)
4.5
30.0
30.0
30.0
5.4
26.0
30.0
30.0
HATP-204HA(VB)
6.3
21.5
30.0
30.0
7.5
16.0
30.0
30.0
HATP-206HA(VB)
9.0
10.5
25.0
25.0
10.8
7.0
23.5
25.0
HATP-208HA(VB)
12.6
7.0
23.0
25.0
15.1
4.0
17.5
25.0
HATP-210HA(VB)
15.3
4.5
15.5
25.0
18.3
2.5
11.5
25.0
HATP-212HA(VB)
18.0
3.5
13.5
20.0
21.6
-
8.5
20.0
HATP-216HA(VB)
24.3
2.0
8.5
20.0
29.1
-
5.5
19.5
HATP-220HA(VB)
29.7
-
5.5
15.5
35.6
-
3.5
14.0
